Raspberry Pi OS ① I2Cバスがたくさん使える

 2020年5月27日に、いままでRaspbianと呼んでいた32ビットOSの呼び名がRaspberry Pi OSに変更されました。現時点で、64ビットRaspberry Pi OSがベータ・テスト中だそうです。

 /boot/overlaysのREADMEを読むと、I2CやSPIバスが増えています。Raspberry Pi 3が発売されたときに、おおきく変更されていたようです。

従来のままのI2C

 バス1を従来から使っていました。後述しますが、/boot/config.txtに、Loadに書かれたように記述しなくてもこのバスは利用できます。

Name:   i2c1
Info:   Change i2c1 pin usage. Not all pin combinations are usable on all
        platforms - platforms other then Compute Modules can only use this
        to disable transaction combining.
Load:   dtoverlay=i2c1,<param>=<val>
Params: pins_2_3                Use pins 2 and 3 (default)
        pins_44_45              Use pins 44 and 45
        combine                 Allow transactions to be combined (default "yes")

変更された用語

 転送速度の指定は、従来dtparam=i2c_baudrate=50000と書きました。何も書かないと100kHzでした。dtparam=i2c_arm_baudrate=50000と書くのが正式だが、従来のままでもよいということですね。

  i2c_arm_baudrate        Set the baudrate of the ARM's i2c interface
                                (default "100000")
  i2c_baudrate            An alias for i2c_arm_baudrate

非推奨のI2C

 検索すると、カーネルが4.14のときに使われていた記述のようです。無視してよいようです。

Name:   i2c0-bcm2708
Info:   Deprecated, legacy version of i2c0, from which it inherits its
        parameters, just adding the explicit individual pin specifiers.
Load:   <Deprecated>非推奨
Params: sda0_pin                GPIO pin for SDA0 (deprecated - use pins_*)
        scl0_pin                GPIO pin for SCL0 (deprecated - use pins_*)


Name:   i2c1-bcm2708
Info:   Deprecated, legacy version of i2c1, from which it inherits its
        parameters, just adding the explicit individual pin specifiers.
Load:   <Deprecated>非推奨
Params: sda1_pin                GPIO pin for SDA1 (2 or 44 - default 2)
        scl1_pin                GPIO pin for SCL1 (3 or 45 - default 3)
        pin_func                Alternative pin function (4 (alt0), 6 (alt2) - default 4)

増えたI2C

 バス2が抜けていますが、バス3からバス6が利用できるようです。

Name:   i2c3
Info:   Enable the i2c3 bus
Load:   dtoverlay=i2c3,<param>
Params: pins_2_3                Use GPIOs 2 and 3
        pins_4_5                Use GPIOs 4 and 5 (default)
        baudrate                Set the baudrate for the interface (default "100000")


Name:   i2c4
Info:   Enable the i2c4 bus
Load:   dtoverlay=i2c4,<param>
Params: pins_6_7                Use GPIOs 6 and 7
        pins_8_9                Use GPIOs 8 and 9 (default)
        baudrate                Set the baudrate for the interface (default "100000")


Name:   i2c5
Info:   Enable the i2c5 bus
Load:   dtoverlay=i2c5,<param>
Params: pins_10_11              Use GPIOs 10 and 11
        pins_12_13              Use GPIOs 12 and 13 (default)
        baudrate                Set the baudrate for the interface (default "100000")


Name:   i2c6
Info:   Enable the i2c6 bus
Load:   dtoverlay=i2c6,<param>
Params: pins_0_1                Use GPIOs 0 and 1
        pins_22_23              Use GPIOs 22 and 23 (default)
        baudrate                Set the baudrate for the interface (default "100000")

 あまり見ない記述に、i2c_vcがあります。次の項目で登場しますが、HATのEEPROM用で使われています。

 i2c_vc                  Set to "on" to enable the i2c interface
                                usually reserved for the VideoCore processor
                                (default "off")
 i2c_vc_baudrate         Set the baudrate of the VideoCore i2c interface
                                (default "100000")

不明なI2C

 ID_SDとID_SC PINSのバス0は、

  '0'のI2CはOSが立ち上がるときにEEPROMを探しに行った後、通常のI/Oピンに戻ります。利用するときは、/boot/config.txtに追加します。
dtparam=i2c_vc=on

※https://learn.sparkfun.com/tutorials/raspberry-pi-spi-and-i2c-tutorial

 利用するときは、SDA、SCLラインはプルアップされていないので、たとえば10kΩ前後の抵抗で3.3Vへプルアップします。SO1602Aで動作を確認しました

 速度の変更は、下記のように記述します。

dtparam=i2c_vc_baudrate=50000

のように従来から使えていました。しかし、指定するpinsがどこにあるのかが不明です。

Name:   i2c0
Info:   Change i2c0 pin usage. Not all pin combinations are usable on all
        platforms - platforms other then Compute Modules can only use this
        to disable transaction combining.
Load:   dtoverlay=i2c0,<param>=<val>
Params: pins_0_1                Use pins 0 and 1 (default)
        pins_28_29              Use pins 28 and 29
        pins_44_45              Use pins 44 and 45
        pins_46_47              Use pins 46 and 47
        combine                 Allow transactions to be combined (default "yes")

 回路図には、コメントが書かれています。一般のユーザは、バス0を使わないのがよいようです。

DO NOT USE these pins for anything other
than attaching an I2C ID EEPROM. Leave
unconnected if ID EEPROM not required.

実際の記述

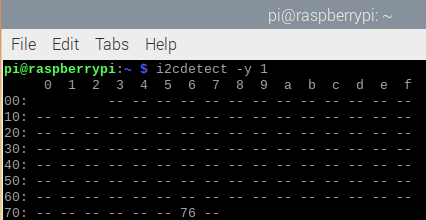

 従来から使っていたバス1は、config.txtに何も記述せずに使えました。GPIO2-SDA、GPIO3-SCLにつないでいるのはMEMSセンサのBME280です。0x76に見つかりました。

>sudo nano /boot/config.txt

でエディタを立ち上げて、次の記述を追加しました。pinsはdefaultと書かれているピン番号です。pinsはpinでも通りました。

dtoverlay=i2c3,pins_4_5
dtoverlay=i2c4,pins_8_9
dtoverlay=i2c5,pins_12_13
dtoverlay=i2c6,pins_22_23

 有効にするためにリブートします。GPIO22-SDA、GPIO23-SCLにBME280センサをつなぎました。バス6に見つけました。

(※)ラズパイのI2Cのバス1は、ボード内で1.8kΩの抵抗でプルアップされています(ラズパイ4では回路図にこの周辺部分が掲載されていない)。購入したBME280のボードにも10kΩの抵抗でプルアップされています。つなぐと、1.8kと10kが並列につながれます。合成抵抗は約1.5kΩです。低めですが、波形の崩れなどは未確認ですが、問題なく通信できています。
 GPIO22、GPIO23にはプルアップ抵抗は入っていないと思われます。

動作の確認

 BME280のライブラリを入れます。

>pip3 install BME280

 /home/pi/.local/binにインストールされたようです。bus1とbus6のどちらも温度、湿度、気圧を読み出しました。

-
